• 25kva,15/0.4kv-1250kva ,15/0.4kv
• 25kva,33/0.4kv-1250kva ,33/0.4kv
• %Z=4%
• No load loss =90w_1000w
• Load loss =570w-11000w
• % no load current<1.5
• 25kva,15/0.4kv-1250kva ,15/0.4kv
• 25kva,33/0.4kv-1250kva ,33/0.4kv
• %Z=4%
• No load loss =90w_1000w
• Load loss =570w-11000w
• % no load current<1.5
• VCB Hv switch gear
• Different Rating of Lv switch gear
• Sf6

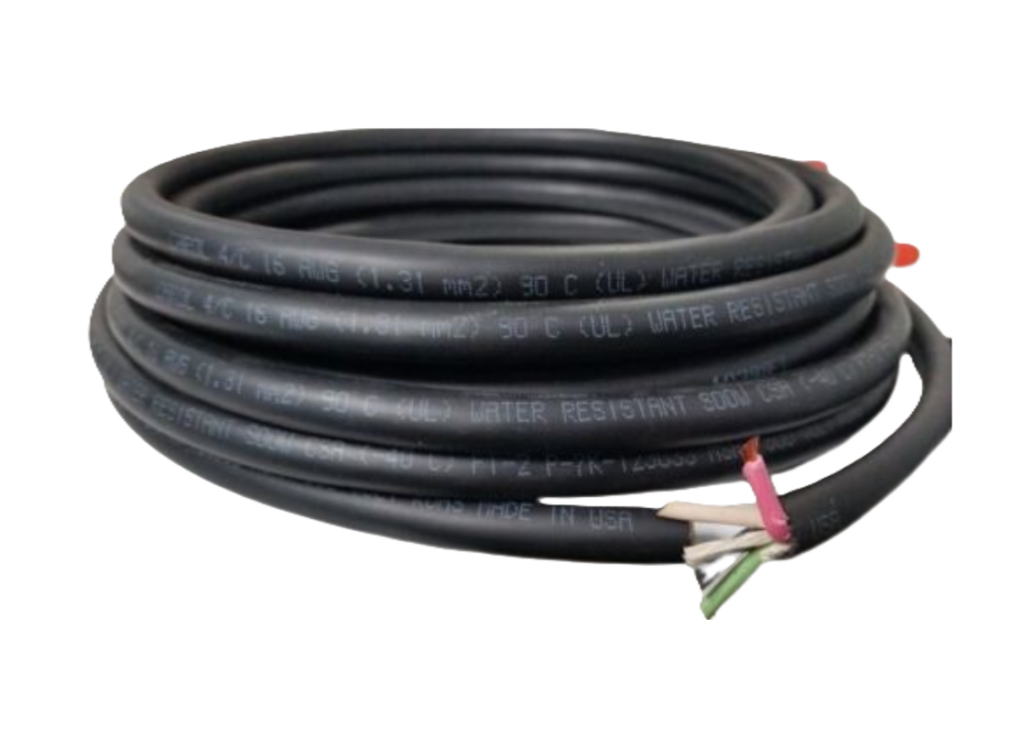

• Standard applied: IEC61089 or equivalent standard
• Purpose: Electric power transmission for LV, MV and HV
• Insulation type: XLPE for LV and MV
• Conductor type: copper core for LV and MV, and Aluminium
core for HV overhead transmissions
• Number of cores: 1 core, 2 core, 3 core, 4 core, 5 core and 6 core with neutral and earth lines
• Main bus bar rating: 25KA
• Bus bar insulation: 24KV
• Bus bar material: copper
• Insulation medium: SF6
• Main bus bar rating: 25KA
• Bus bar insulation: 24KV
• Bus bar material: copper
• Insulation medium: SF6
• Low voltage switch gear: up to 1KV
• Medium voltage: 1 to 75KV
• High voltage : greater than 75KV
Enameled Copper Wire
Ø 0.35mm, 0.5mm, 0.65mm, 0.7mm, 1.00mm,
1.25mm, 1.5mm, 1.8mm, 2.00mm, Impurity =99%
copper class = Gr2, temperature =200 °C
LV Bushing
Rated current=250A, 630A, 1000A, power frequency
withstand voltage/kV(rms)=50kv, Clearance across
insulator=80mm, Specification of creepage distance IEC 60815-2
HV Bushing
Rated current=250A, 630A, 1000A, power frequency
withstand voltage/kV(rms)=50kv, Clearance across
insulator=80mm, Specification of creepage distance IEC 60815-2
Tap Changer
Length=535-570mm, voltage>=10KV, current>=63A,
space height=75mm
Insulation Board
Thi=1mm,1.5mm, 2mm, 3mm, Temperature 150 °C
Crop Tube
2mm,4mm,6mm,8mm,10mm
Craft type
Creep Paper
25mm*100mm
Craft type
Cork Gasket
80*10mm, 60*10mm, 60*5mm, 5000*50*4mm,
5000*50*6mm, 5000*50*8mm
Insulation Paper
Th=0.075mm
w=55cm
Pressure Relief
Floating Type
L=400mm-600mm
Press type
Gate Valve
1 inch, 3/4 inch
Brass type
Voltage Transformer
10, 15, 25, 30, 50, 75, 100, 150, 200, 300, 400, 500 VA.
• Standard: IEC61439 or equivalent
• Ingress Protection: IP54
• Rated operational current of circuits: 100A for 50kVA,160A for 100kVA,300A for
200kVA,500A for 315Kva, 630A for 400kVA
• Rated Short time withstand current: 10KA
• Power frequency withstand voltage: 3KV
• Mechanical endurance: As per IEC 60947 and equivalent standards
• Pillar box dimension 1400 X 1200 X 415 mm
• 6-way (2 I/C + 4 O/G) 1400 X 1400 X 415 mm
• 8-way (2 I/C + 6 O/G) 1400 X 1200 X 415 mm
• Standard applied: BS4360, EN10025-3 or equivalent
• Grade of steel: 42A
• Tensile strength: 430-580 N/mm2
• Yield strength : >275N/mm2
• Galvanization: hot deep galvanized
• Material: high strength copper alloy,
• Bolt and nut: M10X40
• Rated short circuit withstand current: 25KA
• Duration of short circuit: 3 Sec
• 63A/80A/100A/125A 160A/ 200A/ 250A/ 300A/315A/ 350A/ 400A/800A
• Latest amd. of IEC Standard IEC 269-1 and VDE 043/620
• 500V at 50Hz
• As per IEC 60947
• Protection Class: IP23
• Ambient temperature: (-5 °C to +50 °C)
• Lightening Impulse withstand voltage: 6KV
• Rated Voltage: 0.4KV
• Rated operational current: 400A

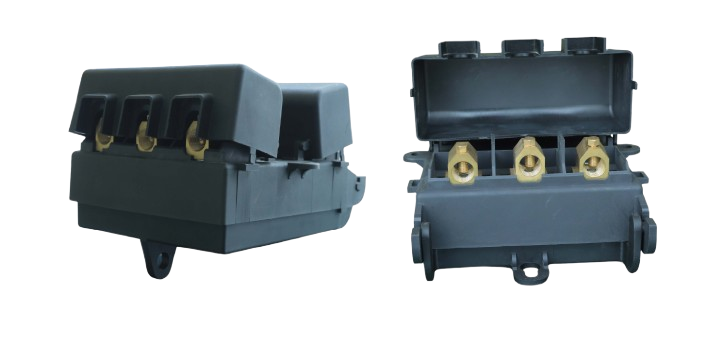

• Pole mounted 3x400A Fuse Box
• Creep age distance: As per IEC 60947
• Protection Class: IP23
• Mechanical endurance: 80KN
• Incoming Terminals cross section: Up-to 240 mm2
• Outgoing Terminals cross section: Up-to 240 mm2
• Type: AL to CU, AL to AL, and CU to CU cable lugs
• IEC Standard
• Applicable conductor size: 10mm2, 25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 120mm2,
185mm2, 240mm2, 300mm2 and 400mm2
• Tin plating thickness: 7micron meter(Min)
• Standard referred: IEC60898-1-2003 and equivalent standards
• Rated operational voltage: 230/400V
• Rated insulation Voltage: 1000V
• Rated thermal current: 25A
• Rated breaking capacity: 10KA for 25A
• Protection class of enclosure: IP55
• Material: Copper
• Power Frequency Withstand Voltage: 3KV
• Nominal System Voltage: 400 V
• FOR 33 KV, 132 KV,220KV & 400KV CT
• Current ratio (A/A)
a) 800-400-200/ 1-1-1A
b) 600-300-150/ 1-1-1A
c) 400-200-100/ 1-1-1A
d) 1200-600- 300/1-1-1.A
• Standard referred: IEC 99-1, IEC TC 37 WG4, IEC 60099
• Creepage distance: 1080mm
• Rated voltage of arrester: 36KV
• Maximum continuous operating voltage: 28.8KV
• Rating operating voltage of system: 33KV
• Standard referred: IEC 99-1, IEC TC 37 WG4, IEC 60099
• Creepage distance: 525mm
• Rated voltage of arrester: 17.5KV
• Maximum continuous operating voltage: 14.4KV
• Rating operating voltage of system: 15KV
• Creepage distance: 525mm
• Phase to phase length: 260mm
• Dray arcing distance: 280mm
• Lighting impulse withstand voltage: 125KV
• Power Frequency withstand voltage: 50KV
• Creepage distance: 1080mm
• Phase to phase length: 466mm
• Dray arcing distance: 480mm
• Lighting impulse withstand voltage: 250KV
• Power frequency withstand voltage: 95KV

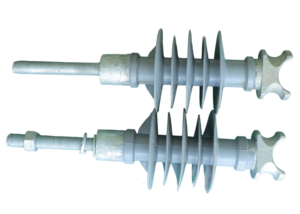

• Creepage distance: 525mm
• Dray arcing distance: 280mm
• Lighting impulse withstand voltage: 125KV
• Stud length:140mm
• Power frequency withstand voltage(wet): 50KV
• Creepage distance: 1080mm
• Phase to phase length: 425mm
• Dray arcing distance: 480mm
• Lighting impulse withstand voltage: 250KV
• Power frequency withstand voltage(wet): 95KV
• Standards: IEC/ VDE
• Creepage distance: 1080mm
• Impulse withstand voltage Phase to Earth (dry): 250KV
• Impulse withstand voltage Across Isolating Distance (dry): 290KV
• Power Frequency withstand voltage Phase to Earth (wet): 95KV
• Power Frequency withstand voltage Across Isolating Distance (wet): 110KV
• Standards: IEC/ VDE
• Creepage distance: 525mm
• Impulse withstand voltage Phase to Earth (dry): 95KV
• Impulse withstand voltage Across Isolating Distance (dry): 110KV
• Power Frequency withstand voltage Phase to Earth (wet): 50KV
• Power Frequency withstand voltage Across Isolating Distance (wet):76KV
• System operation voltage: 15 /33KV
• Max design voltage: 17.5/36KV
• Rated Max. Breaking capacity at rated voltage (symmetrical): 8KA
• Overall length of fuse link: 787/987mm
• Fusing element material: Copper
